NJS 3 Best Built Cutting system

$0.00

• Design and cut name plates, pendant, and earrings in minutes
• Outside flat and curved engraving
• Inside ring engraving
• 4 Axis CNC system
• Automatic surface tracing system
• Personalized outside ring cutting / engraving
• Automatic z-point positioning laser
• Automatic surface sensing probe
• Automatic vacuum collection system
• Automatic liquid coolant system
• Debris collection chamber
• Built in LCD screen and control panel
• Emergency stop button
• Multipurpose jewelers jig / vise
• Solid construction for durability
• Compact size to fit in most jewelry stores or offices

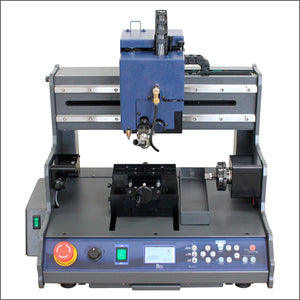

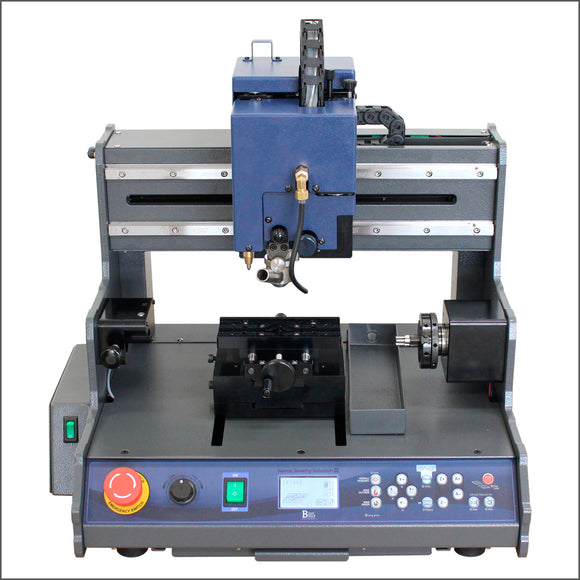

Name Jewelry Solution 3 from Best Built

Product specification
Machine dimension	530mm(W) x 556mm(H) x 433mm(D)
Table size	233mm(X)x193mm(Y)
Maximum cutting size	330mm(X) x 206mm(Y) x 75.5mm(Z)
Maximum feed rate	48mm / sec
Mechanical resolution	(XY)0.005mm / (Z)0.00125mm (A)0.028125degree
Spindle motor	Brushless DC, Max. 70w
Spindle resolution speed	23,000 RPM
Tool chuck	4mm Set screw /?˜6mm Collet chuck (Optional)
Power requirements	AC 100~240V 50/60Hz
Weight	46Kg
Operation temperature	5?? C to 40?? C
Operation humidity	35% to 80%
Instruction system	HPGL, G-Code
Interface	USB
System and software requirement	CPU: Pentium 4 processor or?˜faster recommended RAM: 512 MB Recommended?˜OS: Windows XP,?˜Windows Vista , Windows 7, Windows 8, Windows 10
